CUSTOM TOOLING VIDEOS

Three Position, Single Cycle, Baseball Printer

Base Machine: G8-130/ 3-Color

• (3) Quick change, zero adjust Inking Cup Drive System
• (3) Independently actuated, articulating, Print Heads
• Part holding fixture with part presence sensors.

Medical Device 3 position 30ml CSTD Printing System

Base Machine: G8-150 Double Action-Wide

• Printex model G8-150 DAW pad printer with automatic pad cleaning tape-off unit.
• Independently actuated print heads
• Mitsubishi PLC and HMI for seamless control and monitoring.
• Quick Change Pad Feature
• Quick change, zero adjust Inking cup drive system.
• Quick-change part-holding fixture with fully programmable rotation and linear positioning, ensuring precise placements during the printing process.
• Guarding with interlocked safety switch doors and Keyence light curtains enhances operational safety.

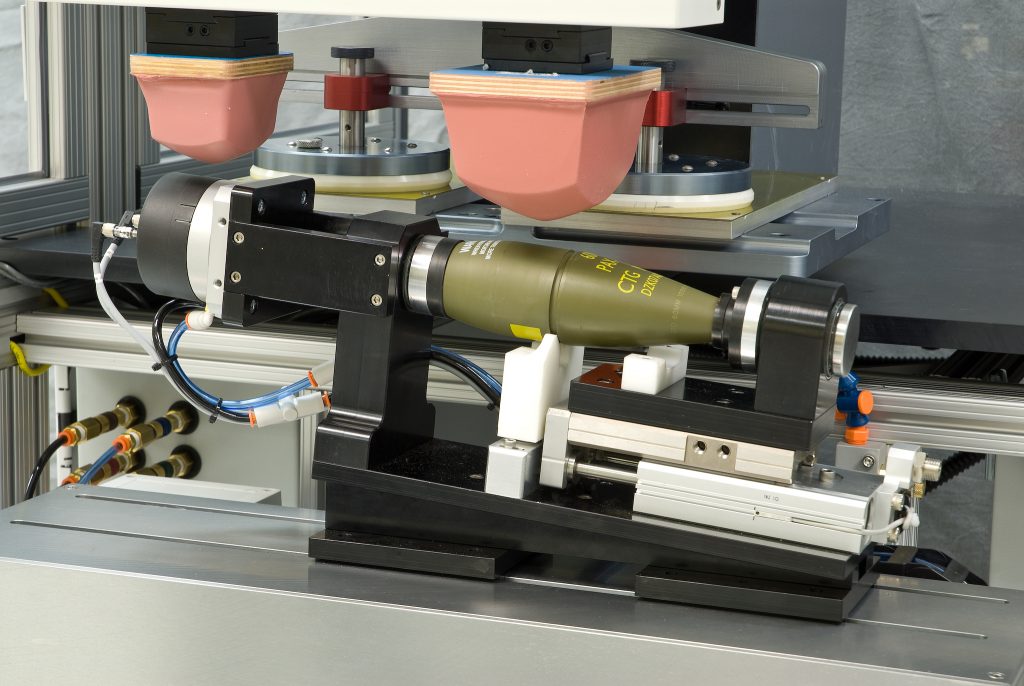

Military M81 Fuse Housing Printing System

Base Machine: G8-150X

• 2-Up Part holding Fixtures
• Tape Cleaning Device
• Shuttling print Heads
• Revolutionary patented articulating printing head with single-angle silicone print pad to print 360° images

Medical Guide Wire Printing (Two sides)

Base Machine: G8-150X

• 180° Print Locations
• Automatic Rotation
• Printed in a Single Handling of the part

Medical Catheter, (2-up) 360° Printing system

Base Machine: CathX Servo 750

• Two catheters, 360°printing, maximum length up to 30 inches
• Tape cleaning device
• Revolutionary, patented, articulating printing heads
  with single-angle silicone print pad’s printing 360° images
• Specialized 2 up catheter part-holding fixture
• Allen Bradly PLC and HMI w pre-programmed job settings
• Servo-controlled Ink, Fixture and Printing Head Drive systems

G8-60 Automotive Wiper housing Printer

Base Machine: G8-60

• Printex model G8-60 Pad Printer
• Mitsubishi PLC and HMI for seamless control and monitoring.
• Operator load/unload
• Part locking mechanism

Medical Catheter, 360° Two color, Printing system

Base Machine: G8-150X

• (2) Color catheter printer with Tape cleaning device
• Revolutionary patented articulating printing head with single-angle silicone print pad to print 360° images
• Specialized catheter part-holding fixture tailored for artwork, equipped with a sensor-activated part-hold down feature
• Dual-color opposing transverse cup drive and plate system that efficiently delivers both colors in a single operation

Medical Device 5 position 2-Up Printing System

Base Machine: G8-150 Double Action-Wide

• Printex model G8-150 DAW pad printer with automatic pad cleaning tape-off unit.
  Independently actuated print heads
• Mitsubishi PLC and HMI for seamless control and monitoring.
• 5 quick change, zero adjust Inking cup drive system
• 2-up Quick change, vacuum assist, zero adjust part holding fixtures secure components during processing.
• XYR-Adjustable work platform
• Guarding with interlocked safety switch doors and Keyence light curtains enhance operational safety.

Multi-Position Automotive Wiper Mode Selector

Base Machine: G8-130/ 4-Color

• (4) Zero adjust, 85mm printing plate system
• (4) Independently actuated printing heads
• (4) position Programmable Linear Servo Indexer
• A programmable rotational drive offers quick-change part holding fixtures, zero adjustment capabilities, simplifying fixture changes and guaranteeing precise printing positions without the need for adjustment.
• 100 Pre-programmed Job storage

Turn Table With Plug-and-Play Interchangeable Tooling

Base Machine: G8-150X

• Tape Cleaning device
• (2) 100 mm wide artwork stations
• (2) Independently actuated printing heads
• Plug-and-play 2-color kit
• Printer integration as a PLC “slave” device driven by turntable

G8-100 Vape Cartridge 4-Up Printing System

Base Machine: G8-100

• Printex model G8-100 Pad Printer
• Mitsubishi PLC and HMI for seamless control and monitoring.
• 4-up Quick change, part holding fixtures secure components during processing.
• Part present sensors detect the presence of parts at different stages.
• Quick change auto part loading magazine
• Post-print tack drying station ensures proper curing.
• 4-position automatic off-load track.

Embossed Placard With Clear Coat

Base Machine: G8-130

• (2) 100 mm wide artwork stations
• (2) Independently actuated printing heads
• Plug-and-play 2-color kit
• Vacuum assist fixture for embossed metal placards

On Demand Printer

Base Machine: G8-150 Double Action-Wide

• Tape Cleaning device
• (6) 100 mm wide artwork stations
• (6) Independently actuated printing heads
• Inline “SMART” fixture, synced with cycle initiating “SMART” sensors

180-Degree Rotary Medical Device Housing

Base Machine: G8-150 Double Action-Wide

• Tape Cleaning device
• (1) 175 mm wide artwork station
• Part present sensor
• Automatic part rotation

4-Position Rotary Printed Medical Device

Base Machine: G8-130

• (4) 85 mm wide artwork stations
• (4) Independently actuated printing heads
• Linear Servo Indexer
• Programmable servo-driven part rotation

Plug-And-Play Printer Integration

Base Machine: G8-150X

• Tape Cleaning device
• (2) 100 mm wide artwork stations
• (2) Independently actuated printing heads
• Plug-and-play 2-color kit
• Printer integration as a PLC “slave” device driven by turntable

Wide Format Catheter Printer

Base Machine: G8-150X

• Tape Cleaning device
• Plug-and-play transverse inking kit
• Pneumatic driven fixture combined with standard print-and-hold function to print around the circumference of catheter tubes.

3-Position Printer With Automatic Rotation

Base Machine: G8-100

• (2) 100 mm wide artwork stations
• (2) Independently actuated printing heads
• Plug-and-play 2-color kit
• Pneumatic 3-position rotary indexing fixture

Hard Hat Printer For Emblem-Style Artworks

Base Machine: G8-130

• (4) 85 mm wide artwork stations
• (4) Independently actuated printing heads
• Linear Servo Indexer

Part Rotation Driven By 2-Color Shuttle

Base Machine: G8-100

• (1) 100 mm wide artwork stations
• Plug-and-play 2-color kit
• 2-color head shuttle driving rotation of part holding fixture

5-Color 200mm X-Y-Z Robotic Printer

Base Machine: G8-150 Double Action-Wide

• (5) 200 mm wide artwork stations
• Programmable servo driven head movement (Y-Axis)
• Programmable servo driven part movement (X-Axis)
• (5) Independently actuated printing heads (Z-Axis)
• Combination of X-Y-Z positioning provides ultimate print position flexibility left/right, in/out, and print surface height.
• Tape Cleaning device
• Quick Change Fixtures

Vacuum Assist Fixture & Unloading Tool

Base Machine: G8-100

• (1) 100 mm wide artwork stations
• Vacuum assist part holding fixture
• Vacuum part unloading tool to remove part without touching the fully printed perimeter

2-Position Printer With Automatic Tilting Fixture

Base Machine: G8-150 Double Action S

• (2) 125 mm wide artwork stations
• Plug-and-play 2-color kit
• Tape Cleaning device
• Automatic tilting part holding fixture to present (2) non-flat print locations perpendicular to the pad for printing

2-Position Printer With Automatic Rotation

Base Machine: G8-100

• (2) 100 mm wide artwork stations
• (2) Independently actuated printing heads
• Plug-and-play 2-color kit
• Pneumatic 2-position rotary indexing fixture

Multi-Color Turntable System With Automatic Unload

Base Machine: G8-100

• (3) G8-100 Printers operating as slaves to the automation PLC
• (1) Horizontal printer to print on the side of the part
• (6) 100 mm wide artwork stations (3 machines printing 2-up)
• Part present sensors
• Perimeter light curtain guarding
• Warm air dry station
• Automatic part unload

4-Position Rotary Printed Medical Device

Base Machine: G8-130

• (4) 85 mm wide artwork stations
• (4) Independently actuated printing heads
• Linear Servo Indexer
• Pneumatically driven 90-degree incremental part rotation

Large Canister Printer

Base Machine: G8-150 Double Action S

• (1) 150 mm wide artwork station
• Extended reach for printing a large artwork on large canister parts
• Elevated part holding fixture with ample clearance for loading & unloading parts

CUSTOM TOOLING PHOTOS
