Standard Models
INTEGRA
Standard Models
INTEGRA
INTRODUCTION
The Printex Integra pad printing platform is specifically designed to meet integration and automation applications.
It features a compact design, sturdy construction, and precise slide motion for accuracy.
A stationary pad drive with reciprocating plate and ink system enables high-speed printing.
“Quick-change” and “zero-adjust” features for easy replacement and accurate positioning of pads and cliches.
INTRODUCTION
The Printex Integra pad printing platform is specifically designed to meet integration and automation applications.
It features a compact design, sturdy construction, and precise slide motion for accuracy.
A stationary pad drive with reciprocating plate and ink system enables high-speed printing.
“Quick-change” and “zero-adjust” features for easy replacement and accurate positioning of pads and cliches.

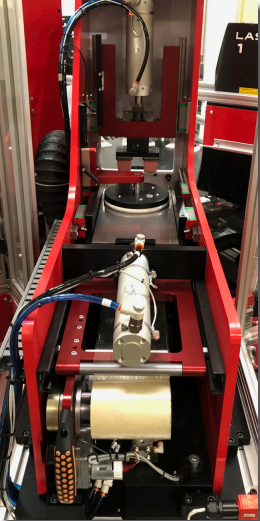

Core Features
The Integra can easily be configured from the standard 175mm single-color printer, to a two-color
printer utilizing 100mm inking cups and moving print heads for precise ink application, achieving two
colors with a single machine.

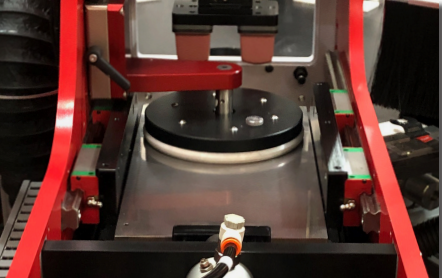

Integra configured for one-color printing.

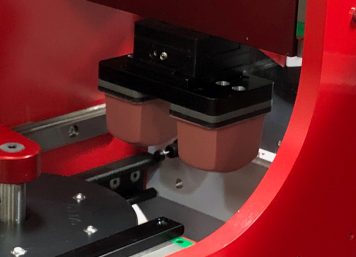

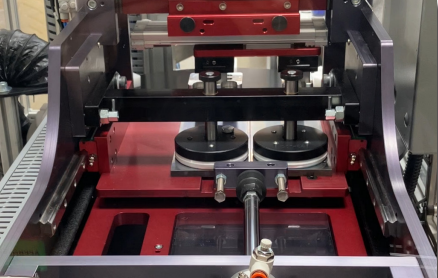

Integra configured for two-color printing.
Core Features
The Integra can easily be configured from the standard 175mm single-color printer, to a two-color printer utilizing 100mm inking cups and moving print heads for precise ink application, achieving two
colors with a single machine.
Integra configured for one-color printing.
Integra configured for two-color printing.
Integration Ready…
- Low profile, rigid chassis providing easy
accessibility - Stationary print heads
- Reciprocating plate movement
- Zero-adjust, quick-change pad and plate system
- Removable quick-change Pad Cleaning
- Cassette simplifies tape replacement
Integration Ready…
- Low profile, rigid chassis providing easy
accessibility - Stationary print heads
- Reciprocating plate movement
- Zero-adjust, quick-change pad and plate system
- Removable quick-change Pad Cleaning
- Cassette simplifies tape replacement
Machine Features
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
Machine Features
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
• Modular design
• Programmable controller
• Touch screen interface
• Independent pad dwell settings for ink and print position
• Independent ink and print stroke settings
• Print and hold print stroke setting
• Job settings storage and recall
• Zero adjust pin registered plate system
• 130mm cup and plate system
• Optional plug and play two color kit for two color printing
• Optional plug and play four color kit for four color printing
• Optional transverse cup drive and plate system for long format printing
• Optional pad cleaning tape-off
• XY adjustable pad adaptor
• XYR and Z adjustable work table
• Emergency stop button
• Foot switch
• Optional floor stand
• 5 year factory limited warranty
• Modular design
• Programmable controller
• Touch screen interface
• Independent pad dwell settings for ink and print position
• Independent ink and print stroke settings
• Print and hold print stroke setting
• Job settings storage and recall
• Zero adjust pin registered plate system
• 130mm cup and plate system
• Optional plug and play two color kit for two color printing
• Optional plug and play four color kit for four color printing
• Optional transverse cup drive and plate system for long format printing
• Optional pad cleaning tape-off
• XY adjustable pad adaptor
• XYR and Z adjustable work table
• Emergency stop button
• Foot switch
• Optional floor stand
• 5 year factory limited warranty
The Integra is automation ready!
Let us help you! Have a pad printing
application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.
The Integra is automation ready!
Let us help you! Have a pad printing application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.

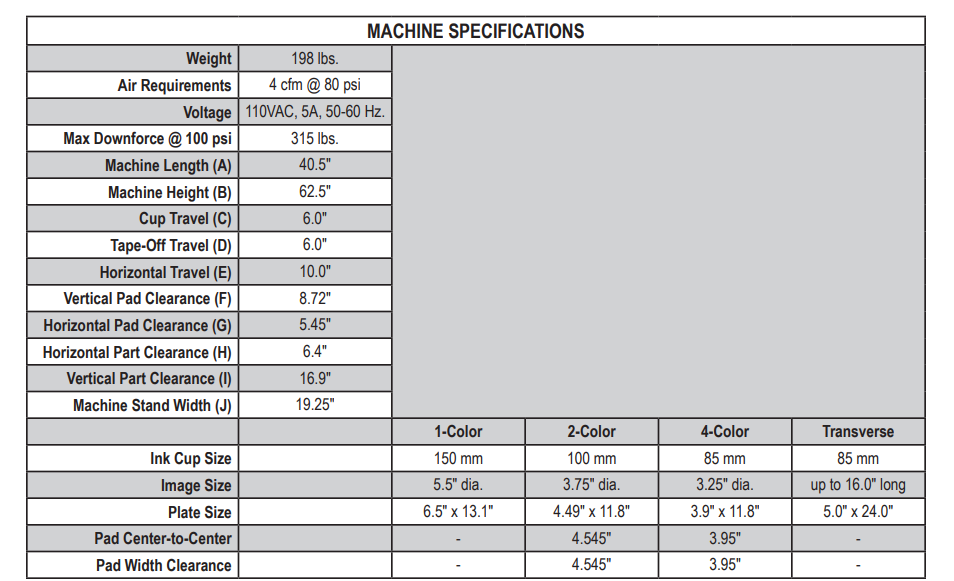

MACHINE SPECIFICATIONS
MACHINE SPECIFICATIONS
APPLICATIONS

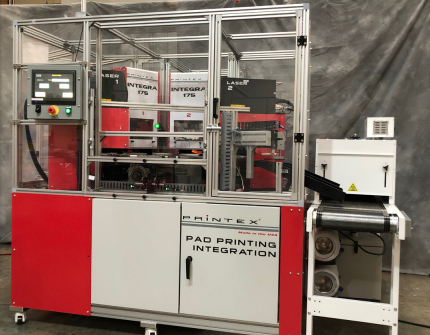

Two Printex Integra-175 Pad Printer features a stationary pad drive with a reciprocating plate and ink system to enables high-speed printing.

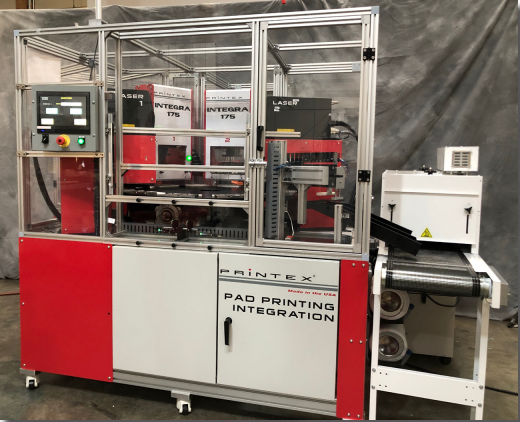

INTEGRA PRINTING SYSTEM
Base Machine: Integra-175
- Part Present Sensors detect parts correctly positioned and present.
- Two Keyence MD-X2 Laser systems, to clean and mark each blade
- Camco 12 Position Motor Driven Cam Actuated Rotary Indexer w/ 40” dial plate provides precise positioning.
- 2 Up Quick Change Zero Adjust Part Holding Fixtures “Quick change” and “zero adjust” features for easy replacement and accurate positioning.
- Automatic Off-Load Station placing parts on to heated conveyor.
- Safety Package includes Keyence Light Curtains at load station to detects operator presence, preventing unauthorized operation until loading is complete in addition to interlocking doors to ensure unauthorized use.
MEDICAL DEVICE “DOSAGE DELIVERY” PRINTING SYSTEM
Base Machine: Integra-175
- Printex Integra-100 2 Color Pad Printer features a stationary pad drive with a reciprocating plate and ink system to enables high-speed printing.
- Part Present Sensors detect parts correctly positioned and present.
- Keyence CV-X Intuitive Vision System Captures images, analyzes them, and provides feedback for accurate printing.
- Camco 8 Position Motor Driven Cam Actuated Rotary Indexer provides precise positioning.
- Quick Change Zero Adjust Part Holding Fixtures “Quick change” and “zero adjust” features for easy replacement and accurate positioning.
- Two Position Automatic Off-Load Station segregates vision systems accepted and rejected parts.
- Safety Package includes Keyence Light Curtains at load station to detects operator presence, preventing unauthorized operation until loading is complete in addition to interlocking doors to ensure unauthorized use.
MEDICAL DEVICE “SKIN STAPLER” PRINTING SYSTEM
Base Machine: Integra-175
- Printex Integra-175 single Color Pad Printer features a stationary pad drive with a reciprocating plate and ink system to enable high-speed printing.
- Keyence Vision Sensors detect parts correctly positioned and present.
- Keyence CV-X Intuitive Vision System Captures images, analyzes them, and provides feedback for accurate printing.
- Camco 8 Position Motor Driven Cam Actuated Rotary Indexer provides precise positioning.
- Quick Change Zero Adjust 2-up Part Holding Fixtures “Quick change” and “zero adjust” features for easy replacement and accurate positioning.
- Two Position Automatic Off-Load Station segregates vision systems accepted and rejected parts.
- Safety Package includes Keyence Light Curtains at load station to detects operator presence, preventing unauthorized operation until loading is complete in addition to interlocking doors to ensure unauthorized use.
PRINTEX INTEGRA: EGINEERED FOR THE DEFENSE INDUSTRY
Base Machine: Integra-175
- This 3-station pad printing system is specifically designed for printing on a large metal cylinder with a tapered end.
- Stations 1 and 2: Print product descriptions and lot code information.
- Station 3: Applies variable information to the tapered end as the part is rotationally indexed beneath the print head.
- Allen-Bradley programmable controller and HMI for seamless integration with a customer’s 6-axis heavy robot and motor-driven part handling system.
- Zero-adjust pad mounting system.
- Zero-adjust and quick-change cup drive and plate system.
- Easy-access, rear-facing quick-change pad cleaning tape-off cassette.
- Fully compatible with a robot-fed linear indexing system that manages rotational indexing and sends corresponding signals for each indexed position.
APPLICATIONS
Two Printex Integra-175 Pad Printer features a stationary pad drive with a reciprocating plate and ink system to enables high-speed printing.
INTEGRA PRINTING SYSTEM
Base Machine: Integra-175
- Part Present Sensors detect parts correctly positioned and present.
- Two Keyence MD-X2 Laser systems, to clean and mark each blade
- Camco 12 Position Motor Driven Cam Actuated Rotary Indexer w/ 40” dial plate provides precise positioning.
- 2 Up Quick Change Zero Adjust Part Holding Fixtures “Quick change” and “zero adjust” features for easy replacement and accurate positioning.
- Automatic Off-Load Station placing parts on to heated conveyor.
- Safety Package includes Keyence Light Curtains at load station to detects operator presence, preventing unauthorized operation until loading is complete in addition to interlocking doors to ensure unauthorized use.
MEDICAL DEVICE “DOSAGE DELIVERY” PRINTING SYSTEM
Base Machine: Integra-175
- Printex Integra-100 2 Color Pad Printer features a stationary pad drive with a reciprocating plate and ink system to enables high-speed printing.
- Part Present Sensors detect parts correctly positioned and present.
- Keyence CV-X Intuitive Vision System Captures images, analyzes them, and provides feedback for accurate printing.
- Camco 8 Position Motor Driven Cam Actuated Rotary Indexer provides precise positioning.
- Quick Change Zero Adjust Part Holding Fixtures “Quick change” and “zero adjust” features for easy replacement and accurate positioning.
- Two Position Automatic Off-Load Station segregates vision systems accepted and rejected parts.
- Safety Package includes Keyence Light Curtains at load station to detects operator presence, preventing unauthorized operation until loading is complete in addition to interlocking doors to ensure unauthorized use.
MEDICAL DEVICE “SKIN STAPLER” PRINTING SYSTEM
Base Machine: Integra-175
- Printex Integra-175 single Color Pad Printer features a stationary pad drive with a reciprocating plate and ink system to enable high-speed printing.
- Keyence Vision Sensors detect parts correctly positioned and present.
- Keyence CV-X Intuitive Vision System Captures images, analyzes them, and provides feedback for accurate printing.
- Camco 8 Position Motor Driven Cam Actuated Rotary Indexer provides precise positioning.
- Quick Change Zero Adjust 2-up Part Holding Fixtures “Quick change” and “zero adjust” features for easy replacement and accurate positioning.
- Two Position Automatic Off-Load Station segregates vision systems accepted and rejected parts.
- Safety Package includes Keyence Light Curtains at load station to detects operator presence, preventing unauthorized operation until loading is complete in addition to interlocking doors to ensure unauthorized use.
PRINTEX INTEGRA: EGINEERED FOR THE DEFENSE INDUSTRY
Base Machine: Integra-175
- This 3-station pad printing system is specifically designed for printing on a large metal cylinder with a tapered end.
- Stations 1 and 2: Print product descriptions and lot code information.
- Station 3: Applies variable information to the tapered end as the part is rotationally indexed beneath the print head.
- Allen-Bradley programmable controller and HMI for seamless integration with a customer’s 6-axis heavy robot and motor-driven part handling system.
- Zero-adjust pad mounting system.
- Zero-adjust and quick-change cup drive and plate system.
- Easy-access, rear-facing quick-change pad cleaning tape-off cassette.
- Fully compatible with a robot-fed linear indexing system that manages rotational indexing and sends corresponding signals for each indexed position.
