INTRODUCTION

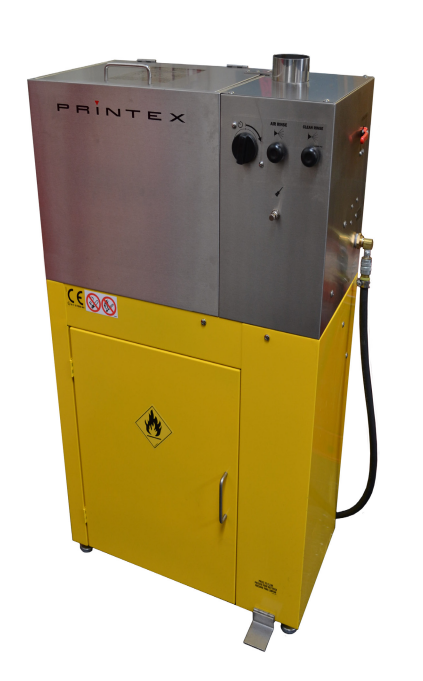

Printex introduces cup cleaning made simple. Self-contained cleaning unit for all sizes of ink cups.
With the G8-Rapidwash your cup cleaning process can be cut down to an average of 1 minute saving you time and money.
In a typical operation printing with a single ink cup the G8-Rapidwash saves over an hour of labor each week in cup cleaning; even more for multiple cups or changeovers daily.
INTRODUCTION
Printex introduces cup cleaning made simple. Self-contained cleaning unit for all sizes of ink cups.
With the G8-Rapidwash your cup cleaning process can be cut down to an average of 1 minute saving you time and money.
In a typical operation printing with a single ink cup the G8-Rapidwash saves over an hour of labor each week in cup cleaning; even more for multiple cups or changeovers daily.
G8-Rapidwash Specifications
Let us help you! Have a pad printing
application? Call us at 1-800-982-1928
System Specifications:
- Average 1 minute cleaning time
- 0-5 minute cycle timer
- Stainless steel cleaning chamber
- Multiple spray nozzles
- Interlocked safety door
- Optional solvent reclamation system
- Removable solvent tanks
- All pneumatic design for safety
- Air rinse cycle
- Clean solvent rinse cycle
- Hand brush with clean solvent supply
- 3.0″ exhaust ready
G8-Rapidwash Specifications
Let us help you! Have a pad printing application? Call us at 1-800-982-1928
System Specifications:
- Average 1 minute cleaning time
- 0-5 minute cycle timer
- Stainless steel cleaning chamber
- Multiple spray nozzles
- Interlocked safety door
- Optional solvent reclamation system
- Removable solvent tanks
- All pneumatic design for safety
- Air rinse cycle
- Clean solvent rinse cycle
- Hand brush with clean solvent supply
- 3.0″ exhaust ready
Machine Features
Machine Features
• Equipped with pneumatic timer and pressure regulator
• Automatic shutoff when lid is raised

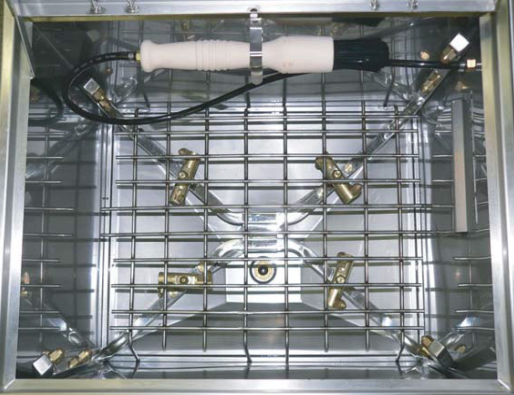

• 14 swirl-action jets
• Clean solvent rinse cycle
• Air pulse dry-off
• Manual cleaning brush
• Built-in vent for fume extraction (external venting required)
• Equipped with pneumatic timer and pressure regulator
• Automatic shutoff when lid is raised
• 14 swirl-action jets
• Clean solvent rinse cycle
• Air pulse dry-off
• Manual cleaning brush
• Built-in vent for fume extraction (external venting required)
Printex offers high-quality, self-contained washing units
for cleaning inking cups.
Printex offers high-quality, self-contained washing units for cleaning inking cups.

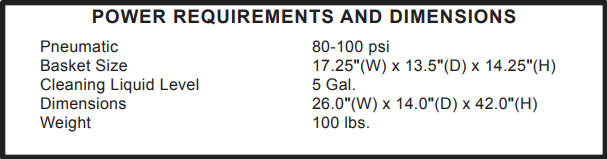

Power Requirements & Dimensions
Power Requirements & Dimensions
