G8-150X
INTRODUCTION
The newly designed G8-150X sets a new standard in its class of mid-sized pad printing machines. The new twin-wall and open “C” frame design give this printer unparalleled strength and rigidity, enabling it to support an arsenal of plug-and-play accessories to accomplish a variety of pad printing applications.
The new G8-150X platform, with plug-and-play accessories can easily be transformed to print one color, two-color, four-color, and long-format printing.
INTRODUCTION
The newly designed G8-150X sets a new standard in its class of mid-sized pad printing machines. The new twin-wall and open “C” frame design give this printer unparalleled strength and rigidity, enabling it to support an arsenal of plug-and-play accessories to accomplish a variety of pad printing applications.
The new G8-150X platform, with plug-and-play accessories can easily be transformed to print one color, two-color, four-color, and long-format printing.
Core Features
User Friendliness
As with all Printex standard equipment, the G8-150X is equipped with a programmable controller and user-friendly touchscreen interface, providing easy access to all machine functions, set up parameters, production print modes and stored job settings.
Machine set up is simple, accurate and repeatable thanks to our pin registered/zero adjust plate adapter system. No tools required.
The XY adjustable pad mounting system makes for quick pad to plate alignments. An adjustable XYZ work table allows for easy print placement location.
Versatililty
Modular by design and PLC controlled, the G8-150X stands ready to perform in both manual and automated environments.
The on board programmable controller enables this printer to drive semi automatic tooling and rotary indexing tables. It can also be easily integrated in to full blown automated production lines.
A quick change “plug and play” transverse cup drive and plate system enables the G8-150X to print long format art work up to 16 inches
Core Features
User Friendliness
As with all Printex standard equipment, the G8-150X is equipped with a programmable controller and user-friendly touchscreen interface, providing easy access to all machine functions, set up parameters, production print modes and stored job settings.
Machine set up is simple, accurate and repeatable thanks to our pin registered/zero adjust plate adapter system. No tools required.
The XY adjustable pad mounting system makes for quick pad to plate alignments. An adjustable XYZ work table allows for easy print placement location.
Versatililty
Modular by design and PLC controlled, the G8-150X stands ready to perform in both manual and automated environments.
The on board programmable controller enables this printer to drive semi automatic tooling and rotary indexing tables. It can also be easily integrated in to full blown automated production lines.
A quick change “plug and play” transverse cup drive and plate system enables the G8-150X to print long format art work up to 16 inches
Capabilities
G8-150X can easily be configured from a standard one-color printer to perform two-color, fourcolor, and transverse long-format printing with optional turnkey plug-and-play conversion kits. The
flexibility of this printer is increased by a factor of three.
Single Color
The G8-150X configured in one-color format accepts a 130mm ink cup and zero-adjust, pin-registered plate system.
Two Color
The two color plug and play conversion kit includes:
• Two position automatic pad slide assembly with twin XY
adjustable pad adapters.
• Two 100mm ink cups and drive pins. Both pre-inked pads
shuttle over the stationary part to perform the two-color print
operation.
• Two 100mm pin-registered zero-adjust plate adapters
Four Color
The four color conversion kit requires a larger PLC and power supply at the time of purchase:
• Four-up dovetailed pad mount bus bar.
• Four XY adjustable pad adapters.
• Four-up cup drive bus bar.
• Four 85mm ink cups and drive pins.
• One (four-up, zero-adjust) plate bed.
• Four 85mm pin-registered plate adapters.
• One servo drive linear indexer with base plate and fixture mount.
Transverse Cup
Transverse cup for narrow artwork up to 16 inches long.
Capabilities
G8-150X can easily be configured from a standard one-color printer to perform two-color, fourcolor, and transverse long-format printing with optional turnkey plug-and-play conversion kits. The
flexibility of this printer is increased by a factor of three.
Single Color
The G8-150X configured in one-color format accepts a 130mm ink cup and zero-adjust, pin-registered plate system.
Two Color
The two color plug and play conversion kit includes:
• Two position automatic pad slide assembly with twin XY
adjustable pad adapters.
• Two 100mm ink cups and drive pins. Both pre-inked pads
shuttle over the stationary part to perform the two-color print
operation.
• Two 100mm pin-registered zero-adjust plate adapters
Four Color
The four color conversion kit requires a larger PLC and power supply at the time of purchase:
• Four-up dovetailed pad mount bus bar.
• Four XY adjustable pad adapters.
• Four-up cup drive bus bar.
• Four 85mm ink cups and drive pins.
• One (four-up, zero-adjust) plate bed.
• Four 85mm pin-registered plate adapters.
• One servo drive linear indexer with base plate and fixture mount.
Transverse Cup
Transverse cup for narrow artwork up to 16 inches long.
Machine Features
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
Machine Features
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
• Modular design
• Programmable controller
• Touch screen interface
• Independent pad dwell settings for ink and print position
• Independent ink and print stroke settings
• Print and hold print stroke setting
• Job settings storage and recall
• Zero adjust pin registered plate system
• 130mm cup and plate system
• Optional plug and play two color kit for two color printing
• Optional plug and play four color kit for four color printing
• Optional transverse cup drive and plate system for long format printing
• Optional pad cleaning tape-off
• XY adjustable pad adaptor
• XYR and Z adjustable work table
• Emergency stop button
• Foot switch
• Optional floor stand
• 5 year factory limited warranty
• Modular design
• Programmable controller
• Touch screen interface
• Independent pad dwell settings for ink and print position
• Independent ink and print stroke settings
• Print and hold print stroke setting
• Job settings storage and recall
• Zero adjust pin registered plate system
• 130mm cup and plate system
• Optional plug and play two color kit for two color printing
• Optional plug and play four color kit for four color printing
• Optional transverse cup drive and plate system for long format printing
• Optional pad cleaning tape-off
• XY adjustable pad adaptor
• XYR and Z adjustable work table
• Emergency stop button
• Foot switch
• Optional floor stand
• 5 year factory limited warranty
G8-100/115 configured as slave to a vibratory bowl feed system with robotic part load and unload to clamping fixtures, inline pretreatment via corona discharge and heated drying stations.
G8-100/115 integrated to a carousel indexer with inline corona discharge pretreatment.
The G8 150X is automation ready!
Let us help you! Have a pad printing
application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.
The G8 100/115 is automation ready!
Let us help you! Have a pad printing application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.

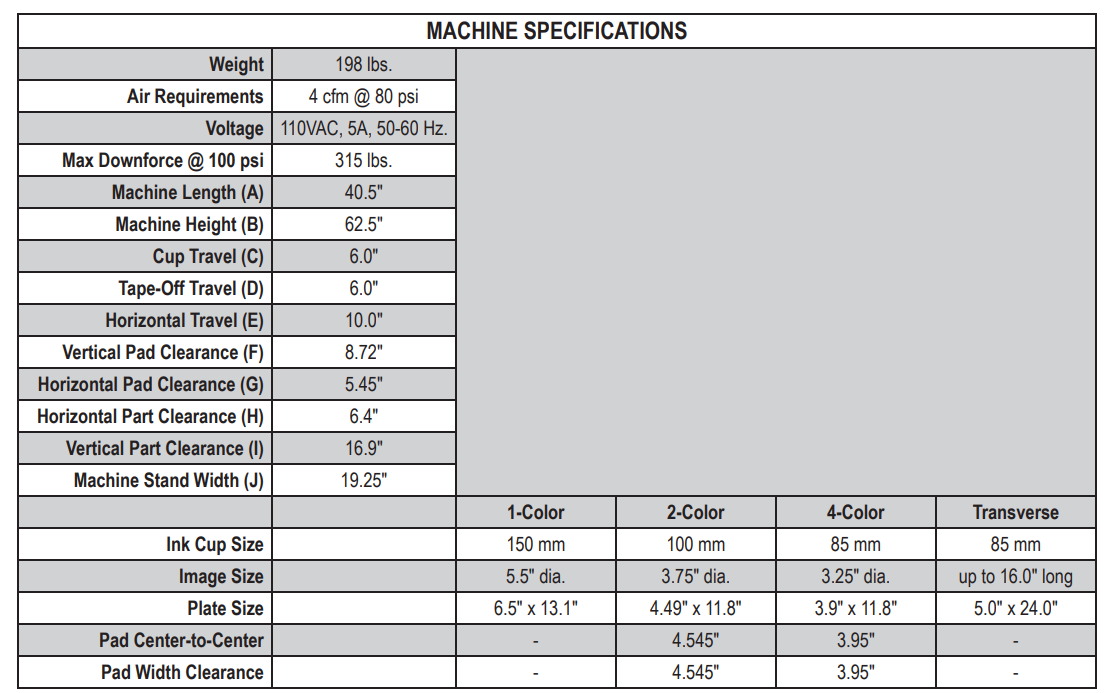

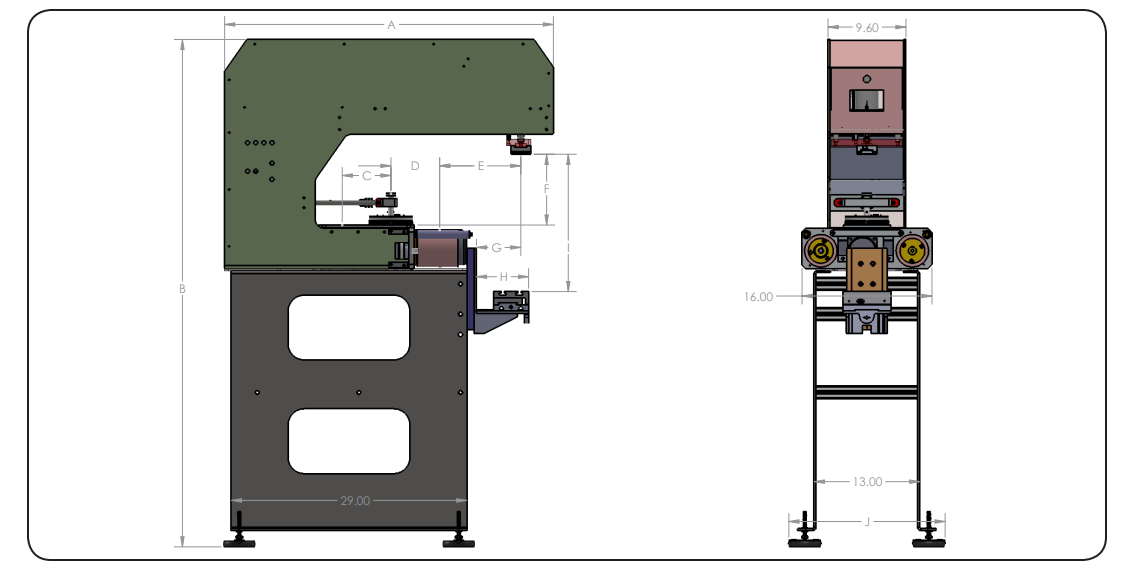

MACHINE SPECIFICATIONS
MACHINE SPECIFICATIONS
APPLICATIONS
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
MEDICAL CATHETER, 360° TWO COLOR, PRINTING SYSTEM
Base Machine: G8-150X
- (2) Color catheter printer with Tape cleaning device
- Revolutionary patented articulating printing head with single-angle silicone print pad to print 360° images
- Specialized catheter part-holding fixture tailored for artwork, equipped with a sensor-activated part-hold down feature
- Dual color opposing transverse cup drive and plate system that efficiently delivers both colors in a single operation
MILITARY M81 FUSE HOUSING PRINTING SYSTEM
Base Machine: G8-150X
- 2Up Part holding Fixtures
- Tape Cleaning Device
- Shuttling print Heads
MEDICAL GUIDE WIRE PRINTING SYSTEM
Base Machine: G8-150X
- Two 180° Print Locations
- Automatic Rotation
- Printed in a Single Handling of the part
2 COLOR ESCUTCHEON PLATE PRINTING SYSTEM
Base Machine: G8-150X Servo
- Programmable servo-controlled print positions,
- Independently operating print heads through servo-controlled X and Y axis.
- Vacuum assisted tooling that can be quickly changed without requiring adjustments.
- Barcoding system for accurate part identification and parameter retrieval.
- Keyence technology to enable two laser operations in both horizontal and vertical orientations.
PRINTEX G8-150X ENGINEERED FOR THE DEFENSE INDUSTRY
Base Machine: G8-150X
- Designed to meet Class 2 Division 2 requirements for safe operation in environments with combustible dust.
- Constructed entirely from stainless steel for durability and wash-down capabilities, ensuring high cleanliness standards.
- Equipped with an Allen-Bradley controller and HMI for precise control.
- Includes advanced safety measures such as Keyence light curtains and two-hand safety switches to enhance operator protection.
- Features an automatic tape cleaning device for efficient maintenance.
- Includes an Aluminum polished part holding fixture for reliable and efficient operation.
PRINTEX G8-150X ENGINEERED FOR THE MEDICAL INDUSTRY
Base Machine: G8-150X
- Allen-Bradley programmable controller and HMI
- 43” long transverse cup drive and plate system
- 40” long pad mount assembly for multiple, variable, pad mounting positions
- 43” long automatic pad cleaning tape-off assembly
- 43” long vacuum manifold for quick change fixture configurations with 3 individual (on/off) vacuum zones
- light curtains
- two-hand actuation switch system
- interlock side guarding
APPLICATIONS
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
MEDICAL CATHETER, 360° TWO COLOR, PRINTING SYSTEM
Base Machine: G8-150X
- (2) Color catheter printer with Tape cleaning device
- Revolutionary patented articulating printing head with single-angle silicone print pad to print 360° images
- Specialized catheter part-holding fixture tailored for artwork, equipped with a sensor-activated part-hold down feature
- Dual color opposing transverse cup drive and plate system that efficiently delivers both colors in a single operation
MILITARY M81 FUSE HOUSING PRINTING SYSTEM
Base Machine: G8-150X
- 2Up Part holding Fixtures
- Tape Cleaning Device
- Shuttling print Heads
MEDICAL GUIDE WIRE PRINTING SYSTEM
Base Machine: G8-150X
- Two 180° Print Locations
- Automatic Rotation
- Printed in a Single Handling of the part
2 COLOR ESCUTCHEON PLATE PRINTING SYSTEM
Base Machine: G8-150X Servo
- Programmable servo-controlled print positions,
- Independently operating print heads through servo-controlled X and Y axis.
- Vacuum assisted tooling that can be quickly changed without requiring adjustments.
- Barcoding system for accurate part identification and parameter retrieval.
- Keyence technology to enable two laser operations in both horizontal and vertical orientations.
PRINTEX G8-150X ENGINEERED FOR THE DEFENSE INDUSTRY
Base Machine: G8-150X
- Designed to meet Class 2 Division 2 requirements for safe operation in environments with combustible dust.
- Constructed entirely from stainless steel for durability and wash-down capabilities, ensuring high cleanliness standards.
- Equipped with an Allen-Bradley controller and HMI for precise control.
- Includes advanced safety measures such as Keyence light curtains and two-hand safety switches to enhance operator protection.
- Features an automatic tape cleaning device for efficient maintenance.
- Includes an Aluminum polished part holding fixture for reliable and efficient operation.
PRINTEX G8-150X ENGINEERED FOR THE MEDICAL INDUSTRY
Base Machine: G8-150X
- Allen-Bradley programmable controller and HMI
- 43” long transverse cup drive and plate system
- 40” long pad mount assembly for multiple, variable, pad mounting positions
- 43” long automatic pad cleaning tape-off assembly
- 43” long vacuum manifold for quick change fixture configurations with 3 individual (on/off) vacuum zones
- light curtains
- two-hand actuation switch system
- interlock side guarding
