Standard Models
G8-150 Double Action/ Wide
Standard Models
G8-150 Double Action/ Wide
INTRODUCTION

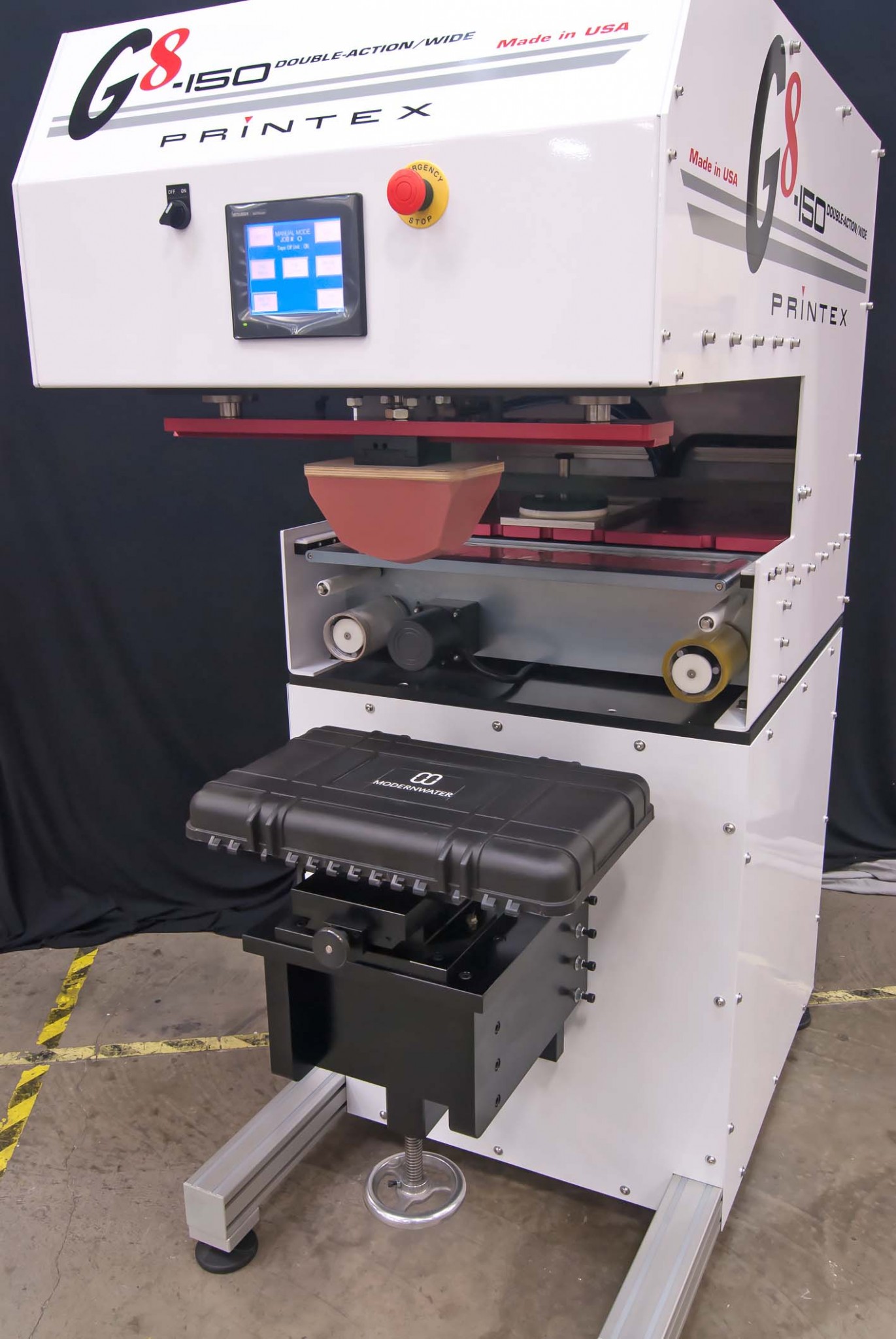

The G8-150 Double Action/ Wide machine is designed to handle big parts and large print areas with maximum flexibility. The “Wide” format machine frame supports a “Double Action” pad and plate movement. The horizontally opposed pad and plate assemblies move in opposite directions to perform the printing and inking functions. This innovative feature gives the print head extended reach, while benefitting from reduced pad travel and cycle times.
Capabilites with Optional Accessories
The modular wide format plate bed supports several ink cup sizes and plate systems to accomplish a variety of single and multi color applications.
“Plug and play” servo linear actuators; carousel and over/under indexing conveyors are available to support multi color printing.
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
29 inch long “plug and play” transverse cup drive and plate system supports a variety of cup sizes up to 150mm for long format printing. User installable automatic pad cleaning tape off assembly
INTRODUCTION
The G8-150 Double Action/ Wide machine is designed to handle big parts and large print areas with maximum flexibility. The “Wide” format machine frame supports a “Double Action” pad and plate movement. The horizontally opposed pad and plate assemblies move in opposite directions to perform the printing and inking functions. This innovative feature gives the print head extended reach, while benefitting from reduced pad travel and cycle times.
Capabilites with Optional Accessories
The modular wide format plate bed supports several ink cup sizes and plate systems to accomplish a variety of single and multi color applications.
“Plug and play” servo linear actuators; carousel and over/under indexing conveyors are available to support multi color printing.
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
29 inch long “plug and play” transverse cup drive and plate system supports a variety of cup sizes up to 150mm for long format printing. User installable automatic pad cleaning tape off assembly
Core Features
User Friendly
The G8-150 Double Action Wide is equipped with a programmable controller and user-friendly touchscreen interface, providing easy access to all machine functions; set up parameters; production print modes; and stored job
settings.
Machine set up is simple, accurate and repeatable thanks to our pin “0” plate adapter system. No tools required.
The XY adjustable pad mounting system makes for quick pad to plate alignments. A large adjustable XYZ work table for part holding fixture allows for easy print placement location.
Versatile
Modular by design and PLC controlled, the G8-150 double Action/ Wide stands ready to perform in both manual and automated environments.
The on board programmable controller and programs available through the touch screen interface enables this printer to command a variety of optional plug and play accessories and interface with automation equipment.
Core Features
User Friendly
The G8-150 Double Action Wide is equipped with a programmable controller and user-friendly touchscreen interface, providing easy access to all machine functions; set up parameters; production print modes; and stored job
settings.
Machine set up is simple, accurate and repeatable thanks to our pin “0” plate adapter system. No tools required.
The XY adjustable pad mounting system makes for quick pad to plate alignments. A large adjustable XYZ work table for part holding fixture allows for easy print placement location.
Versatile
Modular by design and PLC controlled, the G8-150 double Action/ Wide stands ready to perform in both manual and automated environments.
The on board programmable controller and programs available through the touch screen interface enables this printer to command a variety of optional plug and play accessories and interface with automation equipment.
Capabilities
The modular wide format plate bed supports several ink cup sizes and plate systems to accomplish a variety of single and multi color applications. “Plug and play” servo linear actuators; carousel and over/under indexing conveyors are available to support multi color printing.
Single Color

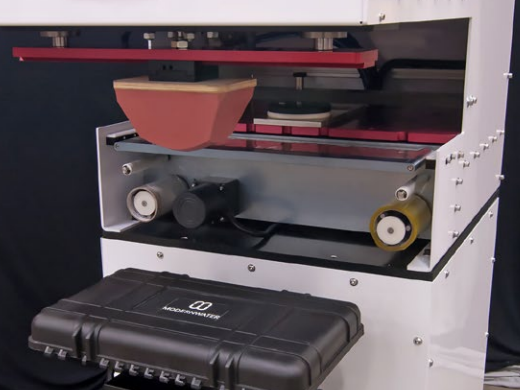

Machine configured for single color printing using a 150mm ink cup and plate system. The G8-150 is equipped with a powerful pad cylinder, generous work space, and extended pad reach to tackle big parts requiring large graphics. Machine configured with wide format modular plate bed to support:
• 150mm cup and plate system for one color, two color, and four color printing
• 130mm cup and plate system for five color printing
• 100mm cup and plate system for six color printing
Four Color
This G8-150 is configured for four color printing using four large loaf pads; four 150mm ink cups and plates with optional “plug and play” 36 inch long servo linear
indexer for part transport.

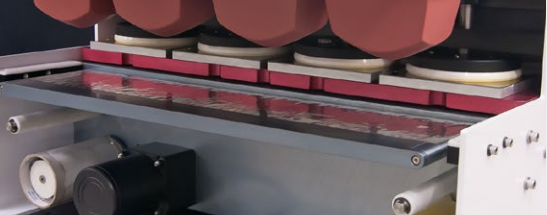

The user installable automatic pad cleaning
tape off assembly works with any plate or
cup drive configuration.
“PLUG and PLAY”

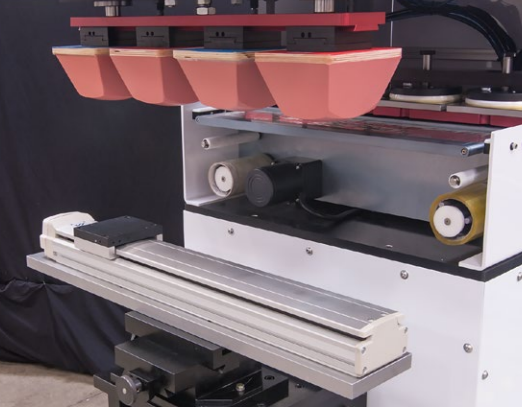

Machine configured with optional “plug and play” transverse inking plate system. The pin registered “0” adjust plate adaptor supports a 6″x29″ photo polymer or thin steel plates. The transverse inking system support ink cups ranging from 60mm to 150mm for long wide format printing.
Capabilities
The modular wide format plate bed supports several ink cup sizes and plate systems to accomplish a variety of single and multi color applications. “Plug and play” servo linear actuators; carousel and over/under indexing conveyors are available to support multi color printing.
Single Color
Machine configured for single color printing using a 150mm ink cup and plate system. The G8-150 is equipped with a powerful pad cylinder, generous work space, and extended pad reach to tackle big parts requiring large graphics. Machine configured with wide format modular plate bed to support:
• 150mm cup and plate system for one color, two color, and four color printing
• 130mm cup and plate system for five color printing
• 100mm cup and plate system for six color printing
Four Color
This G8-150 is configured for four color printing using four large loaf pads; four 150mm ink cups and plates with optional “plug and play” 36 inch long servo linear
indexer for part transport.
The user installable automatic pad cleaning tape off assembly works with any plate or cup drive configuration.
“PLUG and PLAY”
Machine configured with optional “plug and play” transverse inking plate system. The pin registered “0” adjust plate adaptor supports a 6″x29″ photo polymer or thin steel plates. The transverse inking system support ink cups ranging from 60mm to 150mm for long wide format printing.
Accessories
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
Accessories
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.

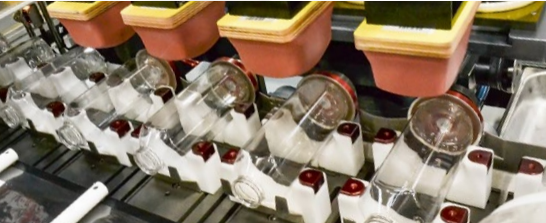

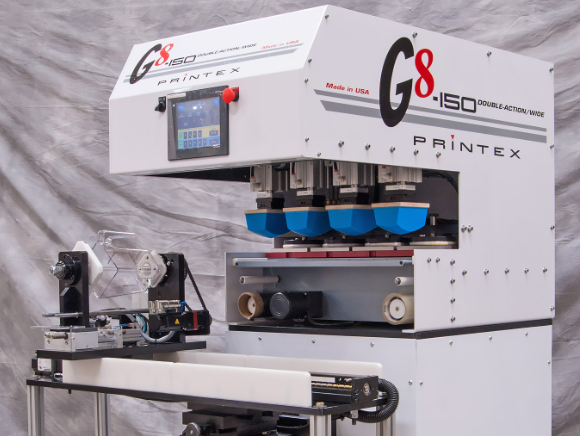

G8-150 configured for four color printing and interfaced to an over/under conveyor indexer with automatic part clamping; part inflation and part rotation at all print stations.
G8-150 printer configured with the following optional accessories:
• Servo horizontal pad movement
• Servo plate movement
• Independent pad actuators
• Four up 150mm cup and plate system
• Automatic pad cleaning tape off
• Plug and play servo linear indexer
• Servo driven variable rotational indexing part holding fixture with automatic clamping
• Printer ultimately interfaced with a large 5 axis robot.

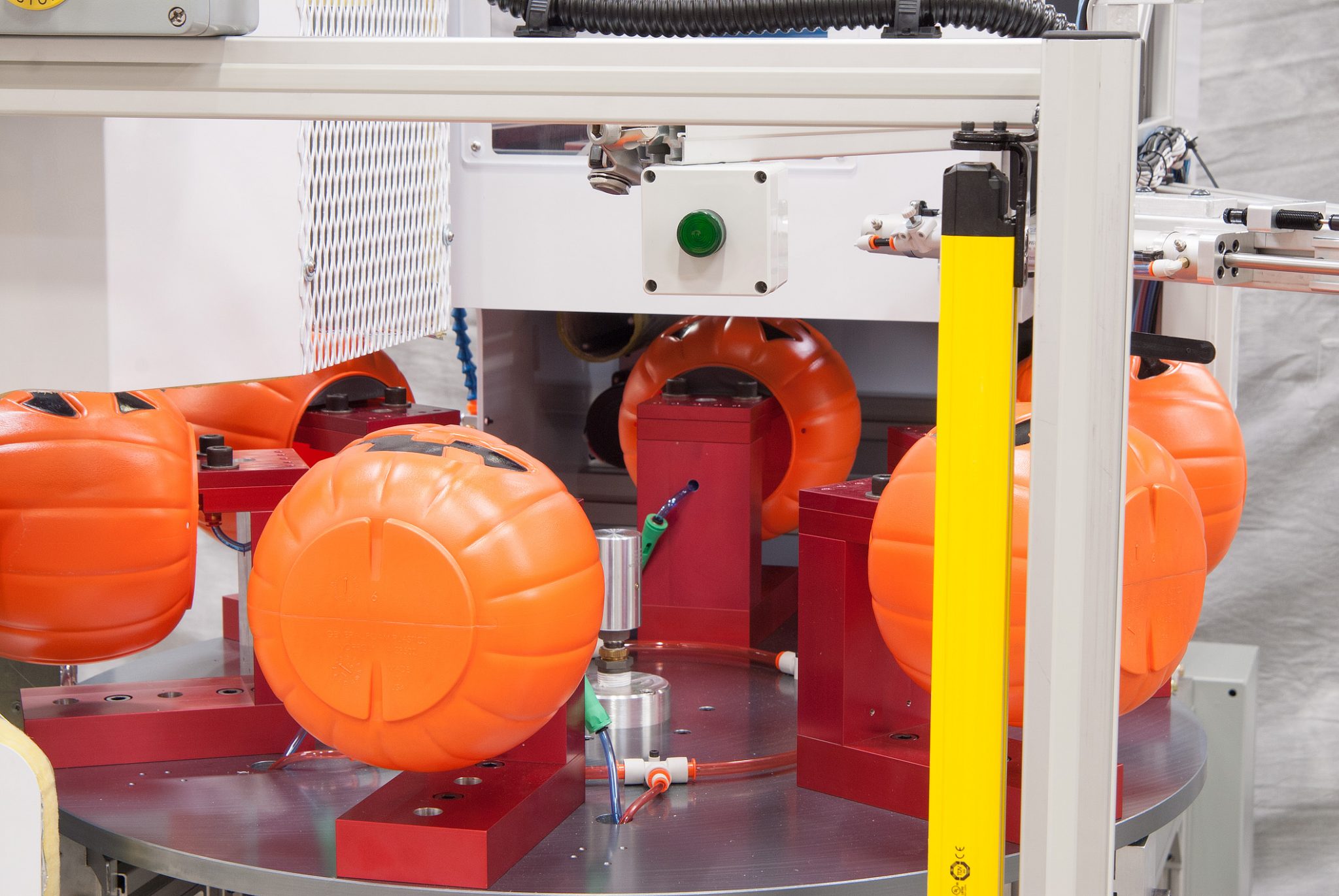

G8-150 configured for one color printing of large round part. Printer interfaced to:
• 6 position motor drive cam actuated turn table with
vacuum assisted part holding fixtures
• In line reciprocating flame pretreat station
• Automatic three axis part take of station with
vacuum assist
G8-150 configured for four color printing and interfaced to an over/under conveyor indexer with automatic part clamping; part inflation and part rotation at all print stations.
G8-150 printer configured with the following optional accessories:
• Servo horizontal pad movement
• Servo plate movement
• Independent pad actuators
• Four up 150mm cup and plate system
• Automatic pad cleaning tape off
• Plug and play servo linear indexer
• Servo driven variable rotational indexing part holding fixture with automatic clamping
• Printer ultimately interfaced with a large 5 axis robot.
G8-150 configured for one color printing of large round part. Printer interfaced to:
• 6 position motor drive cam actuated turn table with
vacuum assisted part holding fixtures
• In line reciprocating flame pretreat station
• Automatic three axis part take of station with
vacuum assist
The G8-150 Double Action Wide is automation ready!
Let us help you! Have a pad printing
application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.
The G8-150 Double Action Wide is automation ready!
Let us help you! Have a pad printing application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.

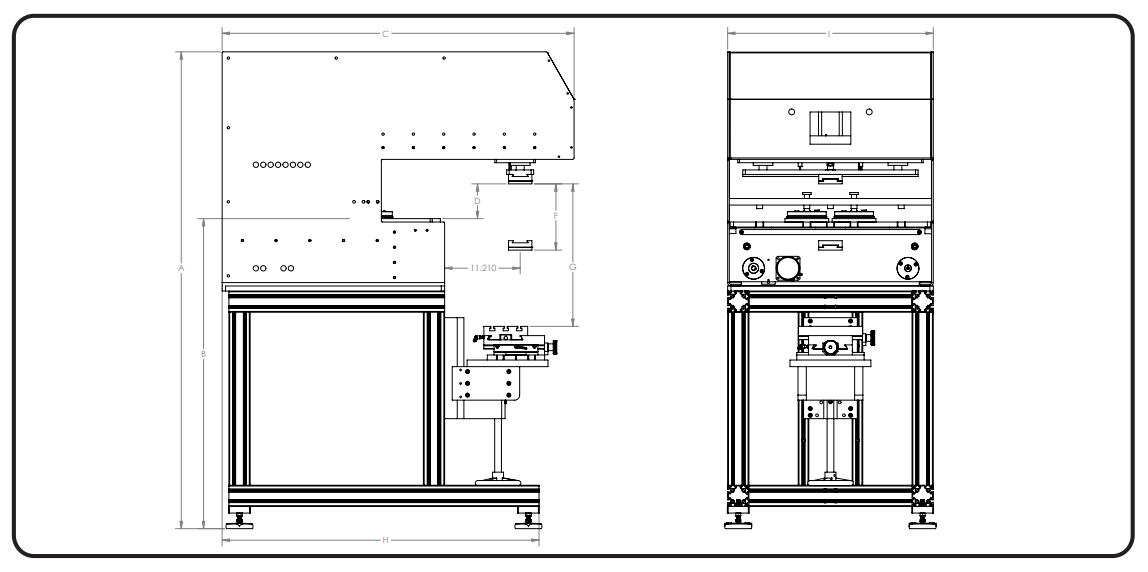

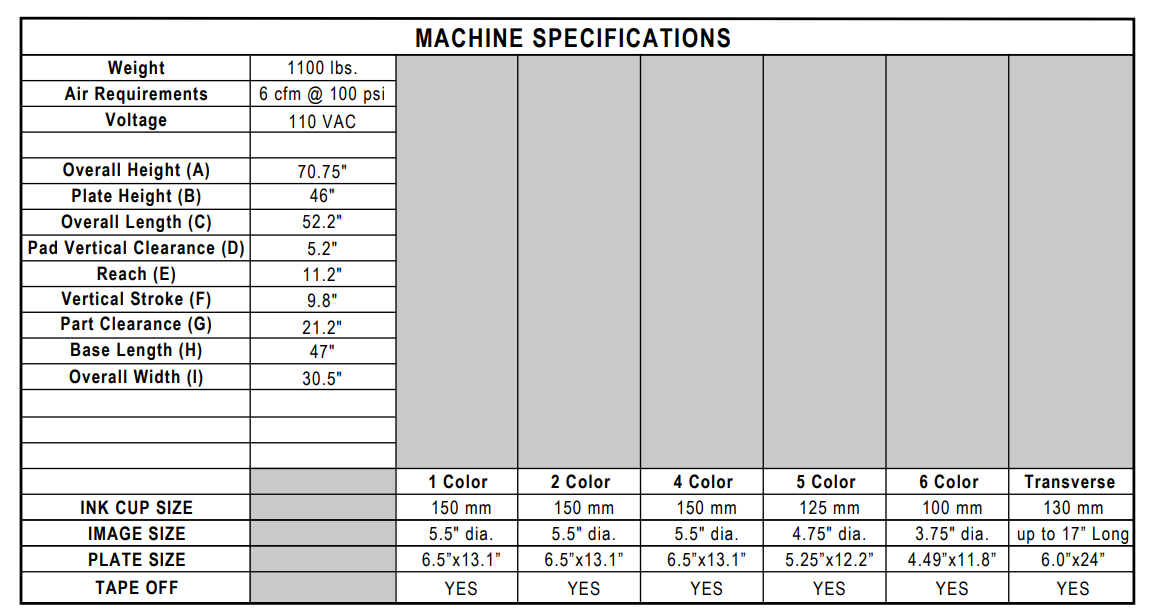

MACHINE SPECIFICATIONS
MACHINE SPECIFICATIONS
APPLICATIONS
The modular wide format plate bed supports several ink cup sizes and plate systems to accomplish a variety of single and multi color applications.
MEDICAL DEVICE 3 POSITION 30ml CSTD PRINTING SYSTEM
Base Machine: G8-150 DAW
- Printex model G8-150 DAW pad printer with automatic pad cleaning tape-off unit.
- Independently actuated print heads
- Mitsubishi PLC and HMI for seamless control and monitoring.
- Quick Change Pad Feature
- Quick change, zero adjust Inking cup drive system.
- Quick-change part-holding fixture with fully programmable rotation and linear positioning, ensuring precise placements during the printing process.
- Guarding with interlocked safety switch doors and Keyence light curtains enhances operational safety.
MEDICAL DEVICE 5 POSITION VESSEL SEALER PRINTING SYSTEM
Base Machine: G8-150 DAW
- Printex model G8-150 DAW pad printer with automatic pad cleaning tape-off unit.
- Mitsubishi PLC and HMI for seamless control and monitoring.
- Quick change, zero adjust, Silicone Pad Mounting System
- Independently actuated print heads
- Quick change, zero adjust Inking Cup Drive System
- Part Holding Fixture equipped with vacuum assist, dual-axis functionality, and 5 customizable settings for both linear and rotational movements.
- Guarding with interlocked safety switch doors and Keyence light curtains enhances operational safety.
MEDICAL DEVICE 5 POSITION 2-UP PRINTING SYSTEM
Base Machine: G8-150 DAW
- Printex model G8-150 DAW pad printer with automatic pad cleaning tape-off unit.
- Independently actuated print heads
- Mitsubishi PLC and HMI for seamless control and monitoring.
- 5 quick change, zero adjust Inking cup drive system
- 2-up Quick change, vacuum assist, zero adjust part holding fixtures secure components during processing.
- XYR-Adjustable work platform
- Guarding with interlocked safety switch doors and Keyence light curtains enhance operational safety.
PAD PRINTING SYSTEM WITH SMART FIXTURE
Base Machine: G8-150 DAW
- Tape Cleaning device
- (6) 100 mm wide artwork stations
- (6) Independently actuated printing heads
- Inline “SMART” fixture, synced with cycle initiating “SMART” sensors
MEDICAL DEVICE 180-DEGREE ROTATE
Base Machine: G8-150 DAW
- Tape Cleaning device
- (1) 150 mm wide artwork station
- Part present sensor
- Automatic part rotation
MILITARY 60mm MORTAR “WARNING” PRINTER
Base Machine: G8-150 DAW
- (2) 150 mm wide artwork station
- Two position printing Automatic “articulating” self-leveling part holding fixture
HARD-HAT PRINTING
Base Machine: G8-150 DAW
- Tape Cleaning device
- (4) 150 mm wide artwork stations
- (4) Independently actuated printing heads
LARGE CANISTER PRINTER
Base Machine: G8-150 DAW
- (1) 150 mm wide artwork station
- Extended reach for printing a large artwork on large canister parts
- Elevated part holding fixture with ample clearance for loading & unloading parts
APPLICATIONS
The modular wide format plate bed supports several ink cup sizes and plate systems to accomplish a variety of single and multi color applications.
MEDICAL DEVICE 3 POSITION 30ml CSTD PRINTING SYSTEM
Base Machine: G8-150 DAW
- Printex model G8-150 DAW pad printer with automatic pad cleaning tape-off unit.
- Independently actuated print heads
- Mitsubishi PLC and HMI for seamless control and monitoring.
- Quick Change Pad Feature
- Quick change, zero adjust Inking cup drive system.
- Quick-change part-holding fixture with fully programmable rotation and linear positioning, ensuring precise placements during the printing process.
- Guarding with interlocked safety switch doors and Keyence light curtains enhances operational safety.
MEDICAL DEVICE 5 POSITION VESSEL SEALER PRINTING SYSTEM
Base Machine: G8-150 DAW
- Printex model G8-150 DAW pad printer with automatic pad cleaning tape-off unit.
- Mitsubishi PLC and HMI for seamless control and monitoring.
- Quick change, zero adjust, Silicone Pad Mounting System
- Independently actuated print heads
- Quick change, zero adjust Inking Cup Drive System
- Part Holding Fixture equipped with vacuum assist, dual-axis functionality, and 5 customizable settings for both linear and rotational movements.
- Guarding with interlocked safety switch doors and Keyence light curtains enhances operational safety.
MEDICAL DEVICE 5 POSITION 2-UP PRINTING SYSTEM
Base Machine: G8-150 DAW
- Printex model G8-150 DAW pad printer with automatic pad cleaning tape-off unit.
- Independently actuated print heads
- Mitsubishi PLC and HMI for seamless control and monitoring.
- 5 quick change, zero adjust Inking cup drive system
- 2-up Quick change, vacuum assist, zero adjust part holding fixtures secure components during processing.
- XYR-Adjustable work platform
- Guarding with interlocked safety switch doors and Keyence light curtains enhance operational safety.
PAD PRINTING SYSTEM WITH SMART FIXTURE
Base Machine: G8-150 DAW
- Tape Cleaning device
- (6) 100 mm wide artwork stations
- (6) Independently actuated printing heads
- Inline “SMART” fixture, synced with cycle initiating “SMART” sensors
MEDICAL DEVICE 180-DEGREE ROTATE
Base Machine: G8-150 DAW
- Tape Cleaning device
- (1) 150 mm wide artwork station
- Part present sensor
- Automatic part rotation
MILITARY 60mm MORTAR “WARNING” PRINTER
Base Machine: G8-150 DAW
- (2) 150 mm wide artwork station
- Two position printing Automatic “articulating” self-leveling part holding fixture
HARD-HAT PRINTING
Base Machine: G8-150 DAW
- Tape Cleaning device
- (4) 150 mm wide artwork stations
- (4) Independently actuated printing heads
LARGE CANISTER PRINTER
Base Machine: G8-150 DAW
- (1) 150 mm wide artwork station
- Extended reach for printing a large artwork on large canister parts
- Elevated part holding fixture with ample clearance for loading & unloading parts
