Standard Models
G8-130
Standard Models
G8-130
INTRODUCTION
The newly designed G8-130 sets a new standard in its class of medium sized pad printing machines. The new twin wall and open “C” frame design give this printer unparalleled strength and rigidity enabling it to support an arsenal of plug and play accessories to accomplish a variety of pad printing applications.
The new G8-130 platform, with optional plug and play accessories can easily be transformed to print one color; two color printing; four color and long format printing. The new G8-130 machine supports all existing Printex G4-130 cup, plate and pad mounting components.
INTRODUCTION
The newly designed G8-130 sets a new standard in its class of medium sized pad printing machines. The new twin wall and open “C” frame design give this printer unparalleled strength and rigidity enabling it to support an arsenal of plug and play accessories to accomplish a variety of pad printing applications.
The new G8-130 platform, with optional plug and play accessories can easily be transformed to print one color; two color printing; four color and long format printing. The new G8-130 machine supports all existing Printex G4-130 cup, plate and pad mounting components.
Core Features
User Friendliness
As with all Printex standard equipment, the G8-130 is equipped with a programmable controller and user-friendly touchscreen interface, providing easy access to all machine functions, set up parameters, production print modes and stored job settings.
Machine set up is simple, accurate and repeatable thanks to our pin registered/zero adjust plate adapter system. No tools required.
The XY adjustable pad mounting system makes for quick pad to plate alignments. An adjustable XYZ work table allows for easy print placement location.
Versatililty
Modular by design and PLC controlled, the G8-130 stands ready to perform in both manual and automated environments.
The on board programmable controller enables this printer to drive semi automatic tooling and rotary indexing tables. It can also be easily integrated in to full blown automated production lines.
A quick change “plug and play” transverse cup drive and plate system enables the G8-130 to print long format art work up to 12 inches
Core Features
User Friendliness
As with all Printex standard equipment, the G8-130 is equipped with a programmable controller and user-friendly touchscreen interface, providing easy access to all machine functions, set up parameters, production print modes and stored job settings.
Machine set up is simple, accurate and repeatable thanks to our pin registered/zero adjust plate adapter system. No tools required.
The XY adjustable pad mounting system makes for quick pad to plate alignments. An adjustable XYZ work table allows for easy print placement location.
Versatililty
Modular by design and PLC controlled, the G8-130 stands ready to perform in both manual and automated environments.
The on board programmable controller enables this printer to drive semi automatic tooling and rotary indexing tables. It can also be easily integrated in to full blown automated production lines.
A quick change “plug and play” transverse cup drive and plate system enables the G8-130 to print long format art work up to 12 inches
Capabilities
The G8-130 can easily be configured from a standard one color printer to perform two color; four color; and transverse long format printing with optional turn key plug and play conversion kits. The flexibility of this printer is increased by a factor of three.
Single Color
The G8-130 configured in one color format accepts a 130mm ink cup and “0” adjust, pin registred plate system.
Two Color
The two color plug and play conversion kit includes:
- Two position automatic pad slide assembly with twin XY
adjustable pad adapters. - Two 100mm ink cups and drive pins. (Both pre inked pads
shuttle over the stationary part to perform the two color print operation). - Two 100mm pin registered “0” adjust plate adapters.
Four Color
The four color conversion kit requires a larger PLC and power supply at the time of purchase:
- Four up dove tailed pad mount bus bar.
- Four XY adjustable pad adapters.
- Four up cup drive bus bar.
- Four 85 mm ink cups and drive pins.
- Four 85mm pin registered plate adapters.
- One servo drive linear indexer with base plate and fixture mount.
Transverse Cup
Transverse cup for narrow artwork up to 12 inches long.
Capabilities
The G8-130 can easily be configured from a standard one color printer to perform two color; four color; and transverse long format printing with optional turn key plug and play conversion kits. The flexibility of this printer is increased by a factor of three.
Single Color
The G8-130 configured in one color format accepts a 130mm ink cup and “0” adjust, pin registred plate system.
Two Color
The two color plug and play conversion kit includes:
- Two position automatic pad slide assembly with twin XY
adjustable pad adapters. - Two 100mm ink cups and drive pins. (Both pre inked pads
shuttle over the stationary part to perform the two color print operation). - Two 100mm pin registered “0” adjust plate adapters.
Four Color
The four color conversion kit requires a larger PLC and power supply at the time of purchase:
- Four up dove tailed pad mount bus bar.
- Four XY adjustable pad adapters.
- Four up cup drive bus bar.
- Four 85 mm ink cups and drive pins.
- Four 85mm pin registered plate adapters.
- One servo drive linear indexer with base plate and fixture mount.
Transverse Cup
Transverse cup for narrow artwork up to 12 inches long.
Machine Features
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
Machine Features
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
• Modular design
• Programmable controller
• Touch screen interface
• Independent pad dwell settings for ink and print position
• Independent ink and print stroke settings
• Print and hold print stroke setting
• Job settings storage and recall
• Zero adjust pin registered plate system
• 130mm cup and plate system
• Optional plug and play two color kit for two color printing
• Optional plug and play four color kit for four color printing
• Optional transverse cup drive and plate system for long format printing
• Optional pad cleaning tape-off
• XY adjustable pad adaptor
• XYR and Z adjustable work table
• Emergency stop button
• Foot switch
• Optional floor stand
• 5 year factory limited warranty
G8-100/115 configured as slave to a vibratory bowl feed system with robotic part load and unload to clamping fixtures, inline pretreatment via corona discharge and heated drying stations.
G8-100/115 integrated to a carousel indexer with inline corona discharge pretreatment.
• Modular design
• Programmable controller
• Touch screen interface
• Independent pad dwell settings for ink and print position
• Independent ink and print stroke settings
• Print and hold print stroke setting
• Job settings storage and recall
• Zero adjust pin registered plate system
• 130mm cup and plate system
• Optional plug and play two color kit for two color printing
• Optional plug and play four color kit for four color printing
• Optional transverse cup drive and plate system for long format printing
• Optional pad cleaning tape-off
• XY adjustable pad adaptor
• XYR and Z adjustable work table
• Emergency stop button
• Foot switch
• Optional floor stand
• 5 year factory limited warranty
The G8-130 is automation ready!
Let us help you! Have a pad printing
application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.
The G8-130 is automation ready!
Let us help you! Have a pad printing application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.

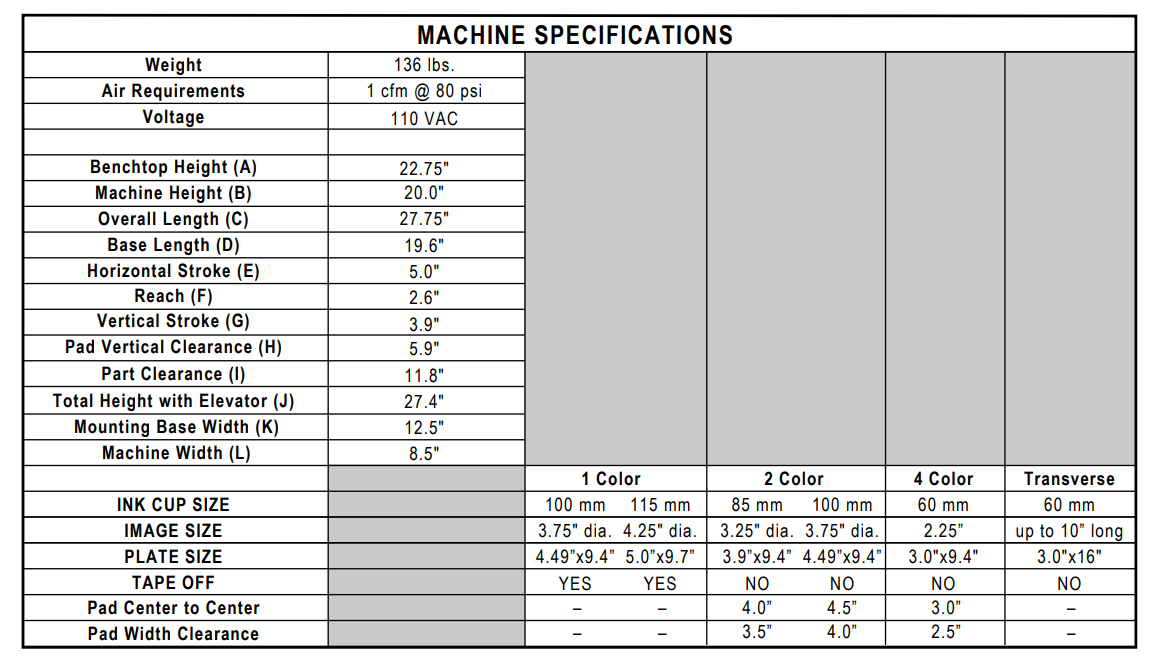

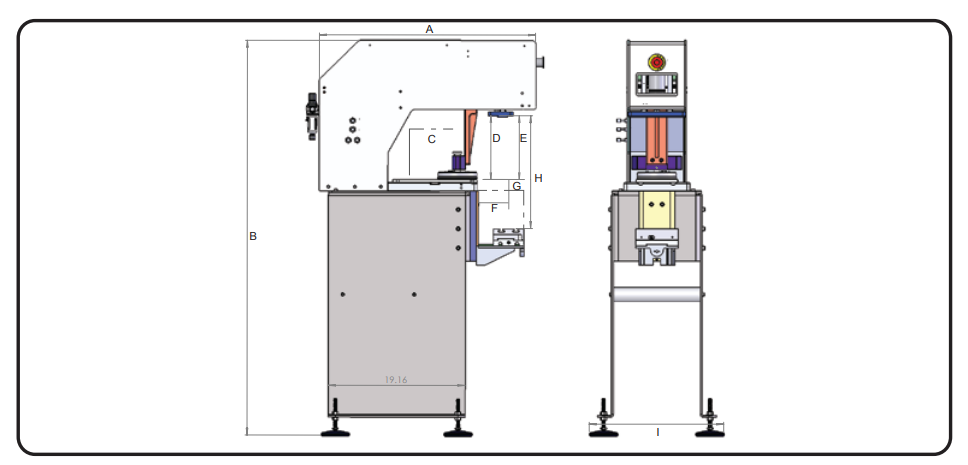

MACHINE SPECIFICATIONS
MACHINE SPECIFICATIONS
APPLICATIONS
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
APPLICATIONS
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
MULTI-POSITION AUTOMOTIVE WIPER MODE SELECTOR
Base Machine: G8-130/4-Color
- (4) Zero adjust, 85mm printing plate system
- (4) Independently actuated printing heads
- (4) position Programmable Linear Servo Indexer
- A programmable rotational drive offers quick-change part holding fixtures, zero adjustment capabilities, simplifying fixture changes and guaranteeing precise printing positions without the need for adjustment.
THREE POSITION, SINGLE CYCLE, BASEBALL PRINTER
Base Machine: G8-130/3-Color
- (3) Quick change, zero adjust Inking Cup Drive System
- (3) Independently actuated, articulating, Print Heads
- Part holding fixture with part presence sensors.
EMBOSSED METAL MEDALLION WITH CLEAR COAT
Base Machine: G8-130/3-Color
- (2) 100 mm wide artwork stations
- (2) Independently actuated printing heads
- Plug-and-play 2-color kit
- Vacuum assist fixture for embossed metal placards
MULTI-POSITION CANNULA PAD PRINTING SYSTEM
Base Machine: G8-130/4-Color
- (4) Zero adjust, 85mm printing plate system
- Plasma Pre-Treat
- (4) Independently actuated printing heads
- (4) position Programmable Linear Servo Indexer
- Multi position 180° artwork placement
PRINTEX 4-COLOR HELMET PAD PRINTING SYSTEM
Base Machine: G8-130/4-Color
- (4) Independently actuated printing heads
- (4) position Programmable Linear Servo Indexer
- (4) position Adjustable Helmet fixture
MULTI-POSITION AUTOMOTIVE WIPER MODE SELECTOR
Base Machine: G8-130/4-Color
- (4) Zero adjust, 85mm printing plate system
- (4) Independently actuated printing heads
- (4) position Programmable Linear Servo Indexer
- A programmable rotational drive offers quick-change part holding fixtures, zero adjustment capabilities, simplifying fixture changes and guaranteeing precise printing positions without the need for adjustment.
THREE POSITION, SINGLE CYCLE, BASEBALL PRINTER
Base Machine: G8-130/3-Color
- (3) Quick change, zero adjust Inking Cup Drive System
- (3) Independently actuated, articulating, Print Heads
- Part holding fixture with part presence sensors.
EMBOSSED METAL MEDALLION WITH CLEAR COAT
Base Machine: G8-130/3-Color
- (2) 100 mm wide artwork stations
- (2) Independently actuated printing heads
- Plug-and-play 2-color kit
- Vacuum assist fixture for embossed metal placards
MULTI-POSITION CANNULA PAD PRINTING SYSTEM
Base Machine: G8-130/4-Color
- (4) Zero adjust, 85mm printing plate system
- Plasma Pre-Treat
- (4) Independently actuated printing heads
- (4) position Programmable Linear Servo Indexer
- Multi position 180° artwork placement
PRINTEX 4-COLOR HELMET PAD PRINTING SYSTEM
Base Machine: G8-130/4-Color
- (4) Independently actuated printing heads
- (4) position Programmable Linear Servo Indexer
- (4) position Adjustable Helmet fixture
