INTRODUCTION
The newly designed G8 100/115 sets a new standard in itsclass of medium sized pad printing machines. The new twin wall and open “C” frame design give this printer unparalleled strength and rigidity enabling it to support an arsenal of plug and play accessories to accomplish a variety of pad printing applications.
As good as it was, the previous generation of G2-100 machines were limited to just one or two color printing. The new G8 100/115 platform, with optional plug and play accessories can easily be transformed to print one color; two color printing; four color and long format printing.
The new G8 100/115 machine supports all existing Printex G2-100 cup, plate and pad mounting components.
INTRODUCTION
The newly designed G8 100/115 sets a new standard in itsclass of medium sized pad printing machines. The new twin wall and open “C” frame design give this printer unparalleled strength and rigidity enabling it to support an arsenal of plug and play accessories to accomplish a variety of pad printing applications.
As good as it was, the previous generation of G2-100 machines were limited to just one or two color printing. The new G8 100/115 platform, with optional plug and play accessories can easily be transformed to print one color; two color printing; four color and long format printing.
The new G8 100/115 machine supports all existing Printex G2-100 cup, plate and pad mounting components.
Core Features
User Friendliness
As with all Printex standard equipment, the G8 100/115 is equipped with a programmable controller and user-friendly touchscreen interface, providing easy access to all machine functions, set up parameters, production print modes and stored job settings.
Machine set up is simple, accurate and repeatable thanks to our pin registered/zero adjust plate adapter system. No tools required.
The XY adjustable pad mounting system makes for quick pad to plate alignments. An adjustable XYZ work table allows for easy print placement location.
Versatililty
Modular by design and PLC controlled, the G8 100/115 stands ready to perform in both manual and automated environments.
The on board programmable controller enables this printer to drive semi automatic tooling and rotary indexing tables. It can also be easily integrated in to full blown automated production lines.
A quick change “plug and play” transverse cup drive and plate system enables the G8 100/115 to print long format art work up to 10 inches
Core Features
User Friendliness
As with all Printex standard equipment, the G8 100/115 is equipped with a programmable controller and user-friendly touchscreen interface, providing easy access to all machine functions, set up parameters, production print modes and stored job settings.
Machine set up is simple, accurate and repeatable thanks to our pin registered/zero adjust plate adapter system. No tools required.
The XY adjustable pad mounting system makes for quick pad to plate alignments. An adjustable XYZ work table allows for easy print placement location.
Versatililty
Modular by design and PLC controlled, the G8 100/115 stands ready to perform in both manual and automated environments.
The on board programmable controller enables this printer to drive semi automatic tooling and rotary indexing tables. It can also be easily integrated in to full blown automated production lines.
A quick change “plug and play” transverse cup drive and plate system enables the G8 100/115 to print long format art work up to 10 inches
Capabilities
The G8 100/115 can easily be configured from a standard one color printer to perform two color; four color; and transverse long format printing with optional turn key plug and play conversion kits. The flexibility of this printer is increased by a factor of three.
Single Color

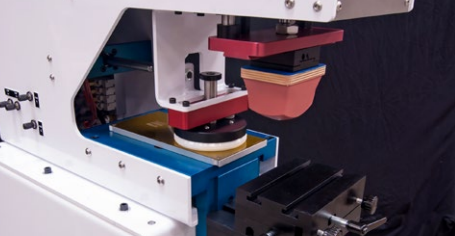

The G8 100/115 configured in one color format accepts both 100mm and 115mm ink cups and “0” adjust, pin registered plate systems

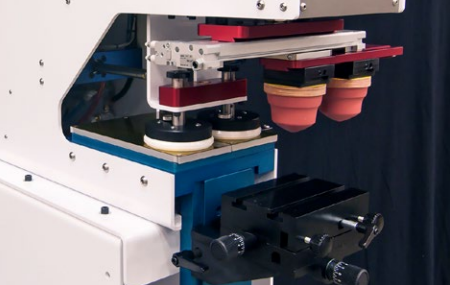

Two Color
The two color plug and play conversion kit includes:
• Two position automatic pad slide assembly with twin XY adjustable pad adapters.
• Two 85mm ink cups and drive pins. (Both pre inked pads shuttle over the stationary part to perform the two color print operation).
• Two 85mm pin registered “0” adjust plate adapters.

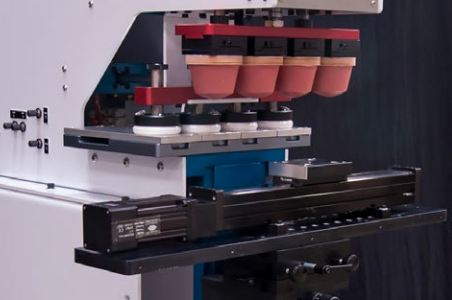

Four Color
The four color conversion kit requires a larger PLC and power supply at the time of purchase:
- Four up dove tailed pad mount bus bar.
- Four XY adjustable pad adapters.
- Four up cup drive bus bar.
- Four 60mm ink cups and drive pins.
- Four 60mm pin registered plate adapters.
- One servo drive linear indexer with base plate and fixture mount.

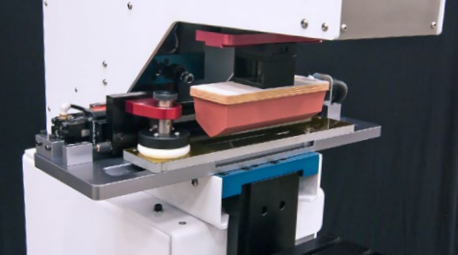

Transverse Cup
Transverse cup for narrow artwork up to 10 inches long.
Capabilities
The G8 100/115 can easily be configured from a standard one color printer to perform two color; four color; and transverse long format printing with optional turn key plug and play conversion kits. The flexibility of this printer is increased by a factor of three.
Single Color
The G8 100/115 configured in one color format accepts both 100mm and 115mm ink cups and “0” adjust, pin registered plate systems
Two Color
The two color plug and play conversion kit includes:
• Two position automatic pad slide assembly with twin XY adjustable pad adapters.
• Two 85mm ink cups and drive pins. (Both pre inked pads shuttle over the stationary part to perform the two color print operation).
• Two 85mm pin registered “0” adjust plate adapters.
Four Color
The four color conversion kit requires a larger PLC and power supply at the time of purchase:
- Four up dove tailed pad mount bus bar.
- Four XY adjustable pad adapters.
- Four up cup drive bus bar.
- Four 60mm ink cups and drive pins.
- Four 60mm pin registered plate adapters.
- One servo drive linear indexer with base plate and fixture mount.
Transverse Cup
Transverse cup for narrow artwork up to 10 inches long.
Machine Features
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
Machine Features
Independent pad actuators can be combined with servo controlled horizontal pad; plate; and work movements to further perform multi color printing with variable XY print positions on a large part.
• Modular design
• Programmable controller
• Touch screen interface
• Independent pad dwell settings for ink and print position
• Independent ink and print stroke settings
• Print and hold print stroke setting
• Job settings storage and recall
• Zero adjust pin registered plate system
• 100mm cup and plate system
• Optional 115mm cup and plate system
• Optional plug and play two color kit for two color printing
• Optional plug and play four color kit for four color printing
• Optional transverse cup drive and plate system for long format printing
• Optional pad cleaning tape-off
• XY adjustable pad adaptor
• XYR and Z adjustable work table
• Emergency stop button
• Foot switch
• Optional floor stand
• 5 year factory limited warranty

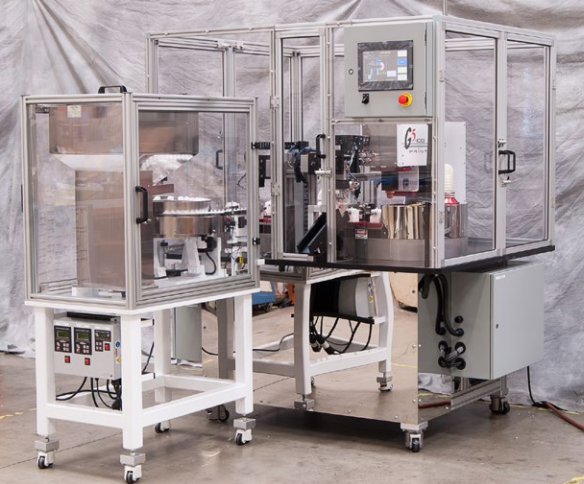

G8-100/115 configured as slave to a vibratory bowl feed
system with robotic part load and unload to clamping fixtures,
inline pretreatment via corona discharge and heated drying
stations.

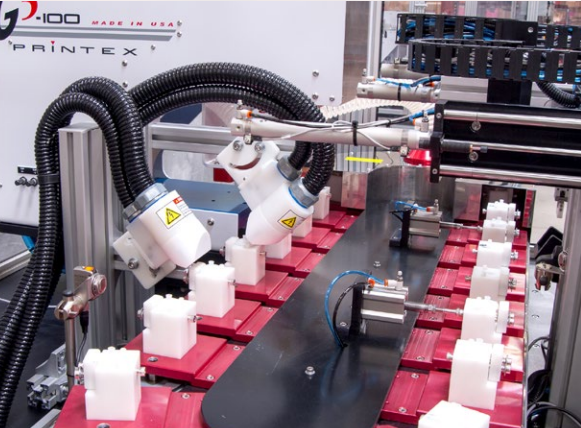

G8-100/115 integrated to a carousel indexer with inline
corona discharge pretreatment.
• Modular design
• Programmable controller
• Touch screen interface
• Independent pad dwell settings for ink and print position
• Independent ink and print stroke settings
• Print and hold print stroke setting
• Job settings storage and recall
• Zero adjust pin registered plate system
• 100mm cup and plate system
• Optional 115mm cup and plate system
• Optional plug and play two color kit for two color printing
• Optional plug and play four color kit for four color printing
• Optional transverse cup drive and plate system for long format printing
• Optional pad cleaning tape-off
• XY adjustable pad adaptor
• XYR and Z adjustable work table
• Emergency stop button
• Foot switch
• Optional floor stand
• 5 year factory limited warranty
G8-100/115 configured as slave to a vibratory bowl feed system with robotic part load and unload to clamping fixtures, inline pretreatment via corona discharge and heated drying stations.
G8-100/115 integrated to a carousel indexer with inline corona discharge pretreatment.
The G8 100/115 is automation ready!
Let us help you! Have a pad printing
application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.
The G8 100/115 is automation ready!
Let us help you! Have a pad printing application? Call us at 1-800-982-1928
Programmable Controller & Software
Standard on all Printex equipment are programmable controllers with expandable I/O capability and touch screen control. The programmable controller has standard interface programs enabling the printer to
function as host or slave in a variety of automation situations.
Electrical Interface
All Printex machines have a 19 pin quick connect electrical port for easy electrical connection to optional plug and play accessories or host systems.
Mechanical Interface
Our design philosophy is modularity. The small footprint of this machine allows for integration in tight spaces. The mechanical base plate is engineered to facilitate mounting of this printer in diverse configurations including: on to a stand; a XYR adjustable stage, or directly on to a host system.

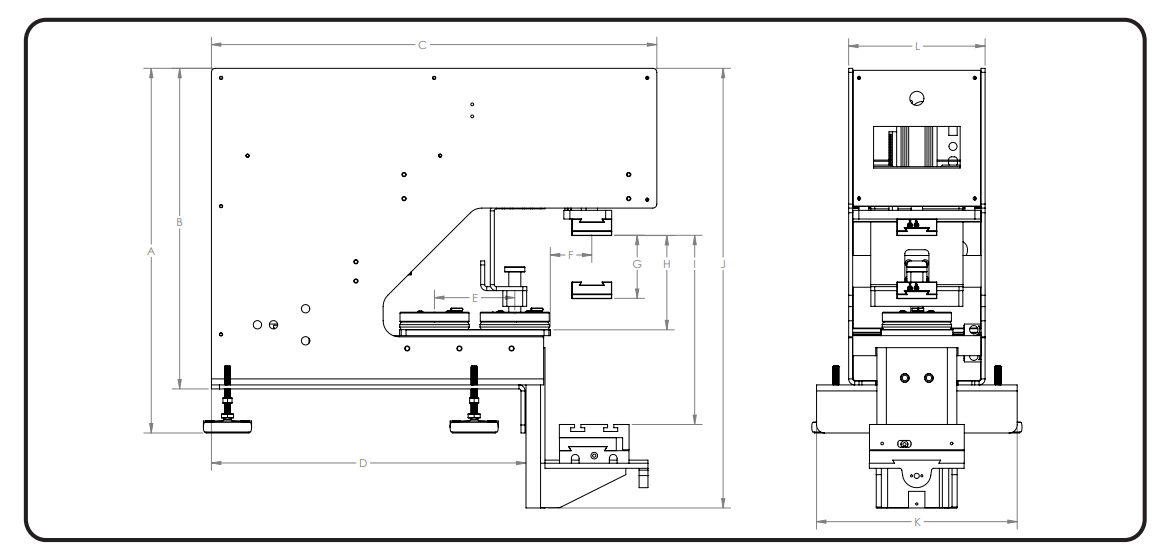

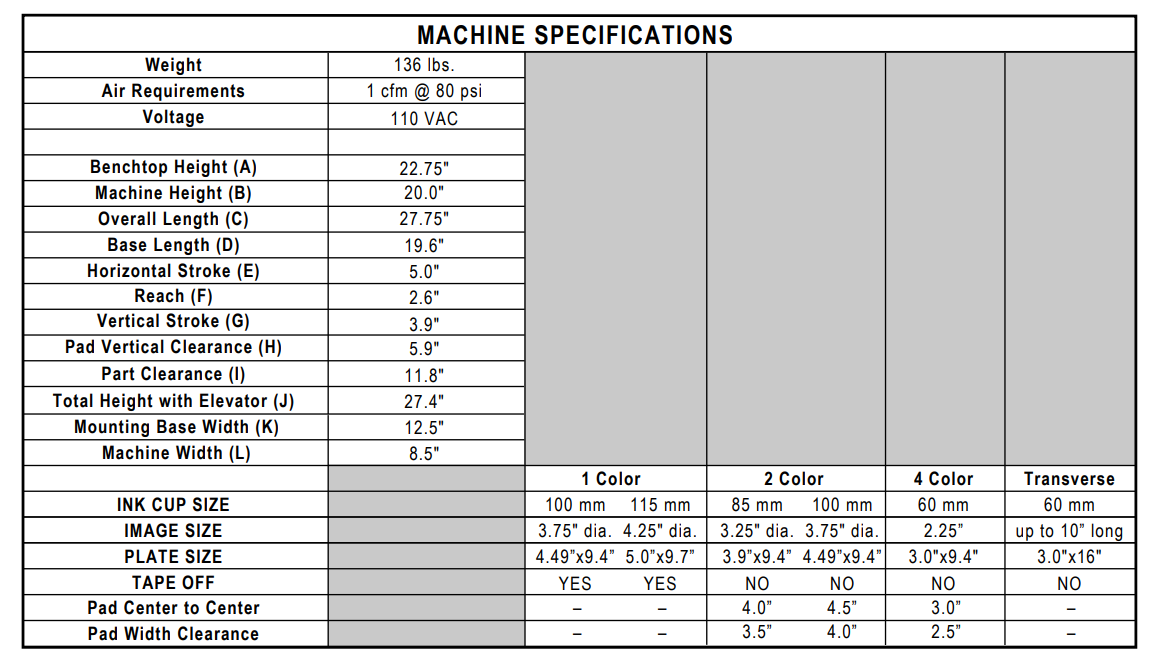

MACHINE SPECIFICATIONS
MACHINE SPECIFICATIONS
APPLICATIONS
The G8 100/115 can easily be configured from a standard one color printer to perform two color; four color; and transverse long format printing with optional turn key plug and play conversion kits. The flexibility of this printer is increased by a factor of three.
APPLICATIONS
The G8 100/115 can easily be configured from a standard one color printer to perform two color; four color; and transverse long format printing with optional turn key plug and play conversion kits. The flexibility of this printer is increased by a factor of three.
G8-100 VAPE CATRIDGE 4-UP PRINTING SYSTEM
Base Machine: G8-100
- Printex model G8-100 Pad Printer
- Mitsubishi PLC and HMI for seamless control and monitoring.
- 4-up Quick change, part holding fixtures secure components during processing.
- Part present sensors detect the presence of parts at different stages.
- Quick change auto part loading magazine
- Post-print tack drying station ensures proper curing.
- 4-position automatic off-load track.
SURGICAL STAPLER/ ANVIL 2-UP PRINTING SYSTEM
Base Machine: G8-100
- Printex model G8-100 pad printer with automatic pad cleaning tape-off unit.
- Mitsubishi PLC and HMI for seamless control and monitoring.
- 2-up Quick change, zero adjust part holding fixtures secure components during processing.
- Post-print tack drying station ensures proper curing.
- Part present sensors detect the presence of parts at different stages.
- 6-position Camco rotary indexer with a 30-inch aluminum dial plate precisely positions parts.
- 2-position automatic off-load station with individual drop locations for either acceptable or rejected parts.
- Guarding with interlocked safety switch doors and Keyence light curtains enhance operational safety.
3-POSITION PRINTER WITH AUTOMATIC ROTATION
Base Machine: G8-100/2
- (2) 100 mm wide artwork stations
- (2) Independently actuated printing heads
- Plug-and-play 2-color kit
- Pneumatic 3-position rotary indexing fixture
MEDICAL DEVICE ROTATIONAL PRINTER
Base Machine: G8-100
- (1) 100 mm wide artwork stations
- 2-color head shuttle driving rotation of part holding fixture
TWO POSITION MEDICAL DEVICE PRINTER
Base Machine: G8-100
- (2) 85 mm wide artwork stations
- 2 position w/ 180° rotation
- Medical device “inhaler warning
AUTOMOTIVE PAD PRINTING SYSTEM
Base Machine: G8-100
- (2) 85 mm wide artwork stations
- 2-up part holding fixture 2 color printing
- 3rd artwork applied w/ horizontal printer
- auto part ejection station
G8-100 VAPE CATRIDGE 4-UP PRINTING SYSTEM
Base Machine: G8-100
- Printex model G8-100 Pad Printer
- Mitsubishi PLC and HMI for seamless control and monitoring.
- 4-up Quick change, part holding fixtures secure components during processing.
- Part present sensors detect the presence of parts at different stages.
- Quick change auto part loading magazine
- Post-print tack drying station ensures proper curing.
- 4-position automatic off-load track.
SURGICAL STAPLER/ ANVIL 2-UP PRINTING SYSTEM
Base Machine: G8-100
- Printex model G8-100 pad printer with automatic pad cleaning tape-off unit.
- Mitsubishi PLC and HMI for seamless control and monitoring.
- 2-up Quick change, zero adjust part holding fixtures secure components during processing.
- Post-print tack drying station ensures proper curing.
- Part present sensors detect the presence of parts at different stages.
- 6-position Camco rotary indexer with a 30-inch aluminum dial plate precisely positions parts.
- 2-position automatic off-load station with individual drop locations for either acceptable or rejected parts.
- Guarding with interlocked safety switch doors and Keyence light curtains enhance operational safety.
3-POSITION PRINTER WITH AUTOMATIC ROTATION
Base Machine: G8-100/2
- (2) 100 mm wide artwork stations
- (2) Independently actuated printing heads
- Plug-and-play 2-color kit
- Pneumatic 3-position rotary indexing fixture
MEDICAL DEVICE ROTATIONAL PRINTER
Base Machine: G8-100
- (1) 100 mm wide artwork stations
- 2-color head shuttle driving rotation of part holding fixture
TWO POSITION MEDICAL DEVICE PRINTER
Base Machine: G8-100
- (2) 85 mm wide artwork stations
- 2 position w/ 180° rotation
- Medical device “inhaler warning
AUTOMOTIVE PAD PRINTING SYSTEM
Base Machine: G8-100
- (2) 85 mm wide artwork stations
- 2-up part holding fixture 2 color printing
- 3rd artwork applied w/ horizontal printer
- auto part ejection station
PrintEx Support
